Hydrotreating is a critical petroleum refining process where hydrocarbon feeds are reacted with hydrogen in the presence of specialized catalysts to remove sulfur, nitrogen, oxygen, and trace metals.
Refining crude oil produces intermediate streams containing significant amounts of naturally occurring organosulfur compounds. When combusted in internal combustion engines or industrial burners, sulfur converts directly into sulfur dioxide, a major contributor to acid rain, atmospheric particulate matter, and urban smog. To mitigate these environmental risks, global regulatory bodies enforce strict Ultra-Low Sulfur Diesel and gasoline regulations, requiring refineries to reduce final sulfur levels below 10 ppm.
Beyond environmental compliance, sulfur removal is fundamental to internal refinery economics and operational integrity. Unrefined sulfur compounds degrade infrastructure by causing severe high-temperature localized corrosion in heat exchangers, piping, and distillation columns. Furthermore, sulfur acts as a severe irreversible catalyst poison for expensive downstream process units, such as noble metal catalytic reformers, fluid catalytic crackers, and isomerization units.
By deploying robust hydrotreating units upstream, refiners can convert harmful organic sulfur into hydrogen sulfide gas, which is subsequently captured and converted into elemental sulfur via Claus recovery units. This dual function protects multi-million-dollar capital investments in downstream catalytic reactors while simultaneously enabling refineries to output clean, market-ready transportation fuels that meet rigorous global standards.
Hydrotreating Function | Primary Objective | Operational Impact |
Hydrodesulfurization (HDS) | Remove organosulfur compounds | Meets sulfur regulations (<10 ppm) and prevents downstream poisoning |
Hydrodenitrogenation (HDN) | Remove organonitrogen compounds | Reduces catalyst inhibition in HDS and cracking units |
Hydrodeoxygenation (HDO) | Remove oxygenated compounds | Improves fuel stability and minimizes corrosion |
Olefin Saturation | Saturate unstable double bonds | Enhances cetane number and storage stability |
Hydrodesulfurization operates through two primary reaction pathways, direct desulfurization and hydrogenation, which break carbon-sulfur bonds in organosulfur species.
The removal of sulfur occurs via heterogeneous catalysis where hydrocarbon molecules and hydrogen gas adsorb onto the active sites of the hydrotreating catalyst. The molecular structure of the sulfur-containing species dictates the difficulty and kinetic pathway of the reaction. Simple mercaptans, sulfides, and disulfides react readily at moderate temperatures, whereas complex heterocyclic compounds like thiophenes, benzothiophenes, and alkyl-substituted dibenzothiophenes require significantly harsher operating conditions due to steric hindrance surrounding the sulfur atom.
The first pathway is Direct Desulfurization (DDS), where the hydrogen molecule directly hydrogenates and cleaves the carbon-sulfur bond without prior saturation of the adjacent aromatic rings. This route consumes less hydrogen and is the dominant mechanism for lighter organosulfur molecules. The second pathway is Hydrogenation (HYD), in which the aromatic rings neighboring the sulfur atom are saturated first, reducing steric constraints and allowing access to the sulfur atom for cleavage. The HYD pathway is essential for heavy molecules, such as 4,6-dimethyldibenzothiophene, where methyl groups physically block the sulfur site.
Understanding these dual kinetic mechanisms allows process engineers to select tailored operating profiles. For streams rich in sterically hindered dibenzothiophenes, such as light cycle oil or heavy gas oil, higher partial pressures of hydrogen are maintained to promote the HYD pathway, ensuring deep desulfurization down to ultra-clean specifications.
Modern hydrotreating catalysts consist of active transition metal sulfides dispersed across a porous, high-surface-area metal oxide support.
The performance of a desulfurization catalyst depends on its chemical composition, physical pore architecture, active phase morphology, and structural integrity under high temperatures and pressures. Active phases typically combine a Group VI metal, such as molybdenum or tungsten, with a Group VIII transition metal promoter, such as cobalt or nickel. Cobalt-Molybdenum (CoMo) catalysts are optimized for selective HDS with minimal hydrogen consumption, whereas Nickel-Molybdenum (NiMo) systems offer high hydrogenation activity necessary for deep sulfur and nitrogen removal.
The support material provides mechanical strength and a broad surface area to maximize active metal dispersion. Gamma-alumina is the industry standard due to its thermal stability, mechanical robustness, and tailored pore size distribution. Advanced formulations incorporate silica, titania, or zeolites to adjust surface acidity, enhancing heavy-feed cracking capabilities while minimizing premature coking.

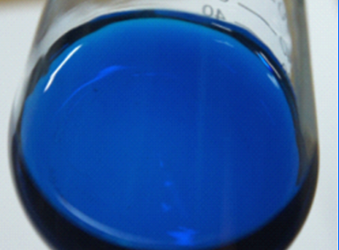

In specialized aqueous or liquid-phase applications, high-efficiency liquid-solid desulfurization catalyst systems utilizing cobalt phthalocyanine compounds are applied to accelerate the oxidation and removal of mercaptans and light sulfur species under mild operational conditions.
When designing catalyst systems for global markets, physical geometry plays a major role. Extrusate shapes such as trilobes and quadralobes are favored in fixed-bed reactors because they reduce pressure drop across the catalyst bed while providing a higher surface-area-to-volume ratio compared to conventional spheres or cylinders.
Component | Standard Materials | Primary Role |
Primary Metal | Molybdenum (Mo), Tungsten (W) | Provides base catalytic activity for C-S cleavage |
Metal Promoter | Cobalt (Co), Nickel (Ni) | Enhances active site activity via MoS2 slab edge activation |
Carrier/Support | Gamma-Alumina (Al2O3), Silica-Alumina | Provides high surface area (200-300 m2/g) and structural support |
Structural Shape | Trilobes, Quadralobes, Spheres | Optimizes bed void fraction and minimizes pressure drop |
Desulfurization efficiency is governed by temperature, total pressure, hydrogen partial pressure, liquid hourly space velocity, and the ratio of hydrogen to hydrocarbon feed.
Process operators must carefully balance operating parameters to maintain desulfurization rates, manage exothermic reactions, and prolong catalyst life. Reaction temperature directly influences the kinetic rate constant of HDS; higher temperatures accelerate C-S bond cleavage. However, excessively high temperatures increase thermal cracking, accelerate coke formation on active sites, and favor thermodynamic limitations in aromatic saturation.
Pressure is equally critical. High hydrogen partial pressure increases the concentration of dissolved hydrogen in the liquid hydrocarbon phase, suppressing coke precursor formation and driving the hydrogenation pathway for difficult sulfur species. Liquid Hourly Space Velocity (LHSV) defines the contact time between the feedstock and the active catalyst sites. Lowering LHSV increases contact time, allowing higher conversion of refractory sulfur compounds, though it reduces overall plant throughput.
Operating Parameter | Typical Range | Effect of Increasing Parameter |
Temperature | 300°C – 400°C | Increases reaction kinetics; accelerates coking rate if excessive |
Hydrogen Pressure | 30 – 150 bar | Enhances sulfur conversion; inhibits catalyst coking |
LHSV | 0.5 – 4.0 h^-1 | Decreases conversion per pass; increases volumetric processing capacity |
Hydrogen-to-Oil Ratio | 100 – 1000 Nm3/m3 | Maintains H2 partial pressure; improves mass transfer rates |
Formulating an optimal strategy requires matching operating parameters with feed quality. Processing heavier feeds containing higher nitrogen and metal content demands lower LHSVs, higher pressure, and specialized pore structures to prevent rapid catalyst pore mouth plugging.
Hydrotreating catalysts are deployed across diverse refinery hydroprocessing units to treat feedstocks ranging from light straight-run naphtha to heavy vacuum residue.
In naphtha hydrotreating, the target is to reduce sulfur and nitrogen levels below 0.5 ppm to protect sensitive platinum-based catalysts in downstream catalytic reformers. The process operates under mild conditions due to the non-refractory nature of light sulfur molecules.
Diesel hydrotreating demands far more severe processing conditions. Refiners must convert highly stable alkyl-dibenzothiophenes to achieve ultra-low sulfur levels (<10 ppm). This necessitates high-activity CoMo or NiMo catalysts operating at elevated hydrogen pressures and optimized temperatures to meet stringent transport fuel regulations.
For heavy feeds like Vacuum Gas Oil (VGO) and residue, hydrotreating acts as a pre-treatment step for Fluid Catalytic Cracking (FCC) or Hydrocracking units. Here, Hydrodemetallization (HDM) and Hydrodenitrogenation (HDN) occur alongside HDS. Demetallization catalysts with large macropores trap nickel and vanadium before the feed contacts fine-pored, highly active HDS and HDN catalyst beds downstream.
In addition to traditional hydrotreating, advanced liquid phase treatment technologies utilizing high-efficiency liquid-solid desulfurization catalyst formulations allow light petroleum fractions and liquid gas streams to undergo sweetening without high-pressure hydrogen infrastructure.
Innovations in desulfurization catalysts focus on active site engineering, morphological control, and hybrid catalyst formulations to maximize mass transfer and chemical activity.
Traditional hydrotreating catalysts exhibit active metal sulfide phases organized as stacked slabs of molybdenum disulfide (MoS2) promoted at the edges by cobalt or nickel atoms. Recent catalyst development concentrates on controlling the slab length and stacking degree at the nanometer scale. Creating Type II active phases—where active metal slabs are fully decoupled from the alumina support—significantly enhances specific activity for converting sterically hindered sulfur molecules.
Another major industry trend is the shift toward bulk metal catalysts and nano-structured formulations. By removing or minimizing inert carrier materials, bulk metal catalysts deliver exceptionally high active site densities per unit volume, enabling refineries with fixed reactor volumes to process heavier feeds or increase throughput without building new pressure vessels.
Furthermore, integrating specialized catalyst formulations, such as liquid-solid desulfurization catalysts, into hybrid treatment loops offers refiners high flexibility for treating volatile mercaptans and light organosulfur species in liquid-phase processing systems, reducing capital expenditure for low-severity streams.
From an engineering perspective, European and Asian refiners increasingly request custom catalyst loading strategies. Layered catalyst beds—featuring dense demetallization catalysts at the top, high-activity CoMo in the middle, and high-hydrogenation NiMo at the bottom—allow a single reactor to process complex, variable crude slops effectively.
Catalyst deactivation occurs via coking, metal poisoning, and thermal sintering, requiring proactive operational management and structured regeneration strategies.
Over operational cycles, hydrotreating catalysts lose activity due to three primary mechanisms: carbonaceous coke deposition, chemical poisoning, and structural phase changes. Coke formation occurs when unsaturated hydrocarbons, polycyclic aromatics, or heavy resins condense onto the catalyst surface and block pore entrances. While coking occurs continuously throughout a run, it can be managed by maintaining sufficient hydrogen partial pressure and avoiding localized thermal hotspots.
Metal poisoning presents an irreversible challenge. Trace contaminants in feedstocks—such as silicon from antifoaming agents, arsenic, iron, nickel, and vanadium—permanently deposit onto active metal sites, causing irreversible activity loss. Top-bed guard materials with graded porosity and high contaminant storage capacity are routinely installed to trap these poisons before they reach the primary active catalyst bed.
Maintain Reactor Pressure Drop: Monitor pressure differential across the catalyst bed daily; sudden increases indicate crust formation, particulate fouling, or physical catalyst breakdown at the top of the bed.
Manage Exotherm Profiles: Distribute hydrogen quench gas evenly across inter-bed locations to prevent runaway exothermic reactions that cause active site sintering and permanent catalyst damage.
Prevent Feed Exposure to Oxygen: Ensure feed storage tanks are nitrogen-blanketed to prevent gum and peroxide formation, which drastically accelerates catalyst coking.
Optimize Presulfiding Protocols: Always perform precise presulfiding of fresh oxide catalysts during startup using spiked sulfiding agents (e.g., DMDS) to fully convert metal oxides into highly active metal sulfide phases before introducing heavy feedstocks.
Off-site ex-situ regeneration allows coked catalysts to regain activity by burning off carbon deposits under controlled oxidation atmospheres. However, if thermal sintering or severe metal poisoning has occurred, replacing the catalyst bed becomes necessary to maintain unit throughput and product quality specifications.
Hydrotreating catalysts remain the cornerstone of modern petroleum refining, enabling the production of clean, high-performance fuels that comply with stringent global environmental standards. By balancing cobalt and nickel promoters, optimizing gamma-alumina supports, and controlling operating parameters like hydrogen partial pressure and temperature, refiners can achieve deep desulfurization even with heavy or variable feedstocks. Maintaining catalyst performance through managed bed loading, top-bed guard systems, and presulfiding protocols ensures extended run lengths, lower operating costs, and reliable refinery performance.
CoMo catalysts offer higher selectivity for hydrodesulfurization (HDS) while consuming less hydrogen, making them ideal for straight-run naphtha and standard diesel applications. NiMo catalysts exhibit significantly higher hydrogenation (HYD) and hydrodenitrogenation (HDN) activity, making them better suited for processing cracked feeds, heavy gas oils, and refractory sulfur compounds.
Downstream processes such as catalytic reforming, isomerization, and hydrocracking utilize sensitive noble metal catalysts (e.g., platinum, palladium). Sulfur irreversibly poisons these noble metal sites, degrading unit efficiency, altering selectivity, and forcing premature shutdown and costly catalyst replacement.
Hydrotreating catalysts are manufactured and shipped in a stable metal oxide state (e.g., CoO-MoO3/Al2O3). Presulfiding converts these metal oxides into active metal sulfide phases (e.g., Co-Mo-S), which are required for catalytic desulfurization activity. Introducing feedstock without proper sulfiding leads to rapid catalyst deactivation and low conversion efficiency.
