Technological Impact of Solid Phosphoric Acid Catalysts

Catalytic Structure and Composition

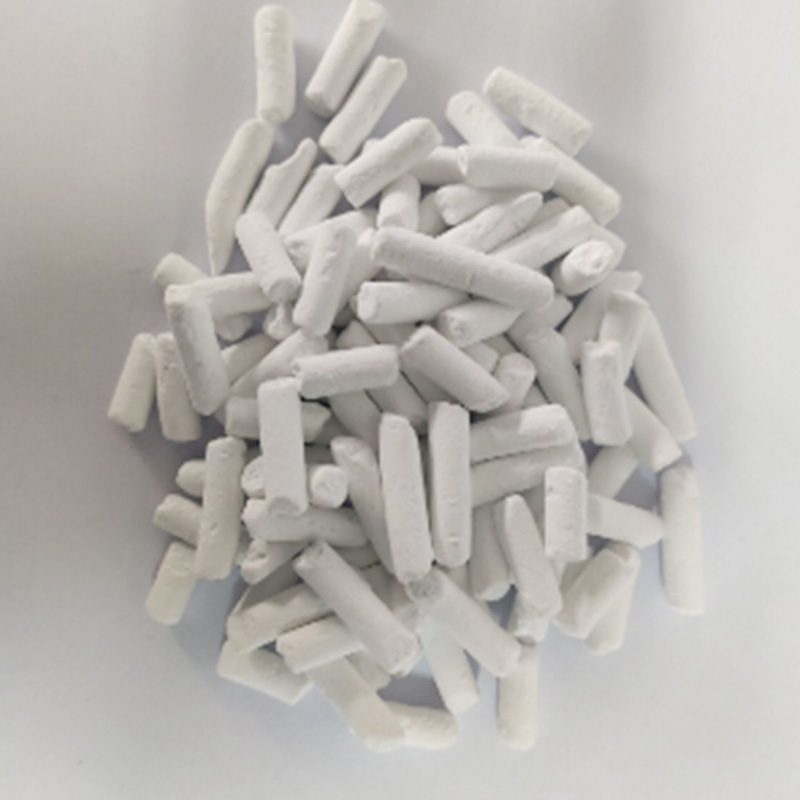

Solid Phosphoric Acid Catalyst systems combine active orthophosphoric acid and pyrophosphoric acid formulations with a porous silica support matrix to form a high-performance heterogeneous acid catalyst.

The synthesis of a high-purity Solid Phosphoric Acid Catalyst involves blending concentrated liquid phosphoric acid with naturally occurring siliceous materials, primarily diatomaceous earth or kieselguhr. This mixture undergoes controlled calcination at elevated temperatures ranging from 200 degrees Celsius to 400 degrees Celsius. During thermal activation, the liquid acid reacts chemically with the free hydroxyl groups on the silica surface, forming a complex network of silicon phosphates, predominantly silicon pyrophosphate and silicon orthophosphate. The resulting catalyst pellet maintains a dense structure containing interdispersed free phosphoric acid locked within its microscopic pore channels. The total free acidity and specific distribution of acid species determine the overall catalytic activity and mechanical strength of the extruded pellets.

To ensure industrial stability, chemical engineers balance the ratio of free phosphoric acid to total silica. Excess free acid yields higher initial activity but dramatically lowers the mechanical crush strength of the pellets, leading to premature bed compaction, pressure drop surges, and mudding inside fixed-bed reactors. Conversely, an over-calcined catalyst with low free acid content exhibits excessive mechanical hardness but lacks sufficient Bronsted acid sites to sustain industrial reaction rates. Refiners routinely evaluate physical properties to verify that the catalyst withstands thermal shocks and mechanical loads during unit loading and startup operations.

Why do we engineer our catalyst support matrix with a carefully tailored pore volume distribution rather than maximum total surface area? In commercial units, ultra-fine micropores suffer from localized condensation of heavy oligomeric polymers, causing fast pore mouth plugging and rapid active site deactivation. European refinery clients prioritize high mechanical integrity and consistent active acid retention under variable feed hydration levels. By optimizing macro-porosity over micro-porosity, the Solid Phosphoric Acid Catalyst retains high acid strength while allowing heavy hydrocarbon intermediates to diffuse out of the pellet structure before coke precursors condense.

Fundamentals of Acid-Catalyzed Reactions

Solid Phosphoric Acid Catalyst charges function primarily as powerful Bronsted acid centers that readily protonate feed olefins to generate stable carbocation intermediates.

The underlying chemistry of a Solid Phosphoric Acid Catalyst relies on proton transfer from the acidic hydroxyl groups present in free orthophosphoric and pyrophosphoric acid species. When raw feed molecules, such as ethylene, propylene, or butylenes, diffuse into the active pore structure, the catalytic acid site protonates the double bond of the alkene. This initial step creates a reactive carbocation. This carbocation rapidly undergoes electrophilic addition to neighboring unprotonated olefin molecules, initiating chain propagation and forming dimer, trimer, or tetramer intermediates depending on reactor residence time and temperature profiles.

Carbocation stability controls reaction rates and product isomer distribution. Secondary and tertiary carbocations form rapidly on the acid sites, driving the selective production of branched hydrocarbons. In aromatic alkylation processes, such as the synthesis of cumene from benzene and propylene, the generated isopropyl carbocation performs an electrophilic substitution on the aromatic ring. Precise tuning of the Bronsted acidity ensures high conversion per pass while suppressing unwanted secondary alkylation reactions that form heavy polyalkylated aromatics.

Refiners must maintain strict control over reaction kinetics by managing acid site density and strength across the catalyst bed. Strong Bronsted sites promote fast cracking and polymerization, whereas weak sites fail to initiate olefin protonation at economical operating temperatures. The physical structure of the Solid Phosphoric Acid Catalyst isolates these acidic centers within a rigid silicon phosphate framework, inhibiting rapid acid migration while ensuring maximum interaction between liquid feed reactants and active protons.

Olefin Oligomerization Technology

Solid Phosphoric Acid Catalyst beds convert light refinery olefins into high-value branched hydrocarbons, including motor gasoline blendstocks, nonene, and dodecene.

In modern petroleum refining, catalytic condensation or oligomerization of C3 and C4 olefins represents a primary application for Solid Phosphoric Acid Catalyst technology. Fluidized Catalytic Cracking (FCC) off-gases contain substantial quantities of light alkenes, primarily propylene and various butene isomers. Passing these light fractions over a fixed bed of Solid Phosphoric Acid Catalyst converts lower-value gas streams into liquid hydrocarbon fractions. The main commercial fractions include polymer gasoline, characterized by high Research Octane Numbers (RON > 95), as well as petrochemical feedstocks such as tripropylene (nonene) and tetrapropylene (dodecene).

During industrial operation, controlling the selectivity toward specific oligomers requires strict temperature profiling across multi-bed reactors. Because olefin condensation reactions are highly exothermic, reactor systems utilize inter-bed cold feed quenches or internal cooling tubes to suppress localized temperature spikes. High temperatures favor cracking, skeletal isomerization, and heavy carbon formation, which rapidly foul the catalyst surface. Lower operating temperatures favor selective dimerization and trimerization, yielding clean, highly branched paraffinic and olefinic liquids ideal for advanced motor fuel blending and detergent surfactant synthesis.

When evaluating commercial performance, refiners often ask why our formulations maintain high selectivity toward nonene and dodecene under high throughput conditions. Standard catalysts frequently suffer from surface acid leaching, which increases liquid-phase acidity and leads to uncontrolled side reactions, yield losses, and heavy tar formation. Our Solid Phosphoric Acid Catalyst incorporates a optimized chemical ratio of silicon pyrophosphate to orthophosphoric acid, locking the active acid sites within the matrix and eliminating unselective polymerization at high liquid hourly space velocities (LHSV).

Aromatic Alkylation and Cumene Synthesis

Solid Phosphoric Acid Catalyst installations synthesize cumene by catalyzing the clean, high-selectivity electrophilic alkylation of benzene with propylene.

Cumene (isopropylbenzene) is an indispensable industrial chemical precursor used globally for producing phenol and acetone. The synthesis of cumene involves reacting benzene with propylene over a dedicated Solid Phosphoric Acid Catalyst bed. The process operates under moderate temperature and pressure conditions designed to keep the benzene reactant predominantly in the liquid phase, thereby washing heavy reaction intermediates from the active catalyst sites and prolonging bed life.

To maximize cumene yield and prevent polyalkylation (the formation of diisopropylbenzene and triisopropylbenzene), industrial units feed benzene in substantial molar excess relative to propylene, typically maintaining a benzene-to-propylene molar ratio between 4:1 and 8:1. The fixed-bed Solid Phosphoric Acid Catalyst facilitates selective mono-alkylation while generating exceptionally low levels of butylbenzenes and oligomeric impurities, which can contaminate downstream phenol distillation units. The robustness of the solid acid media ensures long production cycles without requiring complex inter-stage benzene recovery systems.

Industrial Performance and Lifespan Optimization

Solid Phosphoric Acid Catalyst operational longevity relies on maintaining strict water partial pressure equilibrium, stable temperature control, and feed purification.

The operational lifespan of a Solid Phosphoric Acid Catalyst bed ranges from six months to over two years, depending directly on operating parameters and feed purity. The primary driver of catalyst deactivation is the structural transformation of the active acid species. At elevated temperatures without adequate hydration, active orthophosphoric and pyrophosphoric acids dehydrate into inactive meta-phosphoric acid and solid silicon phosphate phases, causing a dramatic drop in catalytic activity and mechanical softening of the pellets.

Conversely, excess moisture in the hydrocarbon feed hydrolyzes the silicon phosphate matrix, causing active free acid to leach out of the catalyst bed. Acid leaching leads to severe downstream equipment corrosion, fouling of heat exchangers, and physical structural collapse of the catalyst pellets, resulting in severe channel formation and high pressure drop. Refiners continuously inject precise quantities of steam or water (typically 250 to 500 ppm based on total feed mass) into the reactor feed stream to maintain exact chemical equilibrium between orthophosphoric acid, pyrophosphoric acid, and water vapor.

Maintenance Note: Hydration Equilibrium Management: Always adjust water injection rates dynamically whenever reactor inlet temperatures or system pressures are modified. The required water partial pressure varies non-linearly with bed temperature; failing to increase water injection during thermal ramps leads to rapid, irreversible catalyst dehydration, mechanical degradation, and bed mudding.

Comparative Analysis: Solid vs. Liquid Acid Catalysis

Solid Phosphoric Acid Catalyst technology offers superior environmental safety, reduced capital expenditure, and simplified operational workflows compared to liquid acid systems.

Historically, industrial alkylation and oligomerization relied on liquid acid catalysts, primarily concentrated sulfuric acid (H2SO4) and hydrofluoric acid (HF). While liquid acids possess high volumetric activity, they pose significant environmental hazards, extreme safety risks to personnel, and severe equipment corrosion rates. Liquid HF alkylation units require extensive isolation zones, acid mitigation sprays, and hazardous materials protocols due to the potential for toxic vapor cloud formation during containment failures.

Switching to a modern Solid Phosphoric Acid Catalyst completely eliminates the hazards associated with handling corrosive liquid acids. Solid acid systems operate in standard fixed-bed carbon steel or low-alloy steel reactors, dramatically reducing capital expenditure for metallurgy and eliminating the need for complex acid re-contactors, acid settling tanks, and neutralizing waste treatment plants. The solid catalyst remains safely contained inside the pressure vessel throughout its operational life, simplifying maintenance during turnarounds and lowering long-term operating costs.

Refinement engineers choose our high-activity Solid Phosphoric Acid Catalyst because it matches the olefin conversion levels of liquid systems while providing exceptional mechanical strength under high-throughput conditions. European and North American refiners prioritize this solid acid solution to satisfy strict corporate safety standards and regional environmental regulations without compromising unit operating margins.

Commercial Hydration and Thermal Management

Solid Phosphoric Acid Catalyst operations require precise integration of thermal control loops and feed water metering systems to maintain active acid equilibrium throughout the reactor bed.

Achieving maximum run lengths with a Solid Phosphoric Acid Catalyst requires managing thermodynamic and mechanical variables across all reactor zones. Because the active phase exists in a delicate equilibrium between free phosphoric acid, silicon phosphate support, and water vapor, any local temperature excursion shifts the equilibrium toward dehydration or hydration. Commercial multi-bed reactors incorporate multi-point thermocouple assemblies distributed radially and axially throughout the bed to detect temperature spikes before thermal runaways occur.

During startup, operators preheat the catalyst bed using dry, inert nitrogen gas before introducing hydrocarbon feed. Once the bed reaches initial reaction temperatures, water injection pumps start up immediately to establish the target water partial pressure before exposing the active acid sites to reactive olefins. Dry feeds absorb constitutional water from the catalyst structure, triggering rapid activity loss and coke deposition. Conversely, introducing water to a cold catalyst bed causes liquid condensation, resulting in active acid wash-off, severe bed compaction, and rapid differential pressure build-up.

To safeguard your plant's operational profitability and ensure high olefin conversion efficiency, specify our advanced Solid Phosphoric Acid Catalyst for your next fixed-bed turnaround. Our specialized technical support team delivers tailored hydration modeling, custom loading strategies, and operational monitoring to help your refinery achieve long cycle lengths, low pressure drop performance, and reliable product yields.
